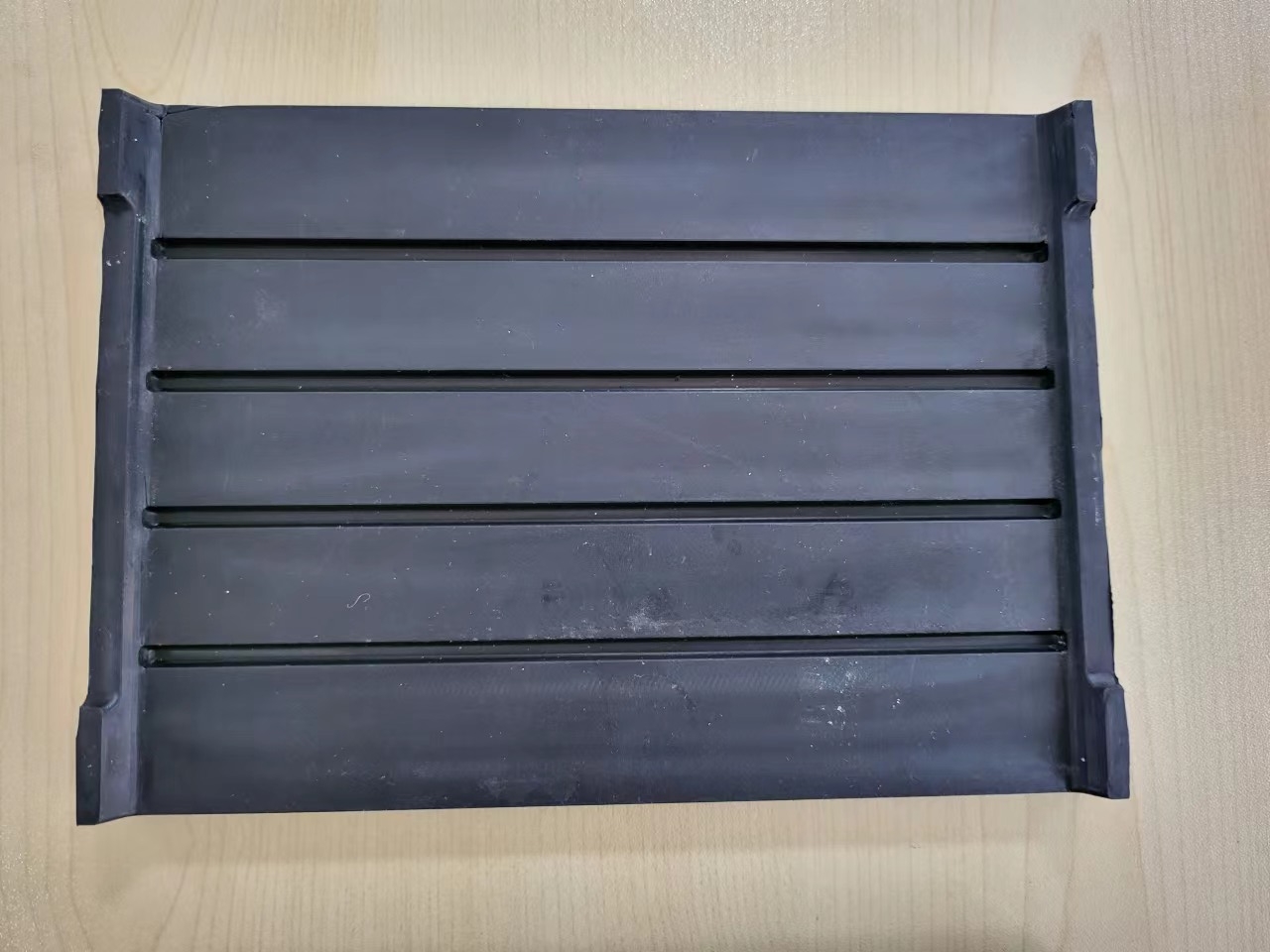

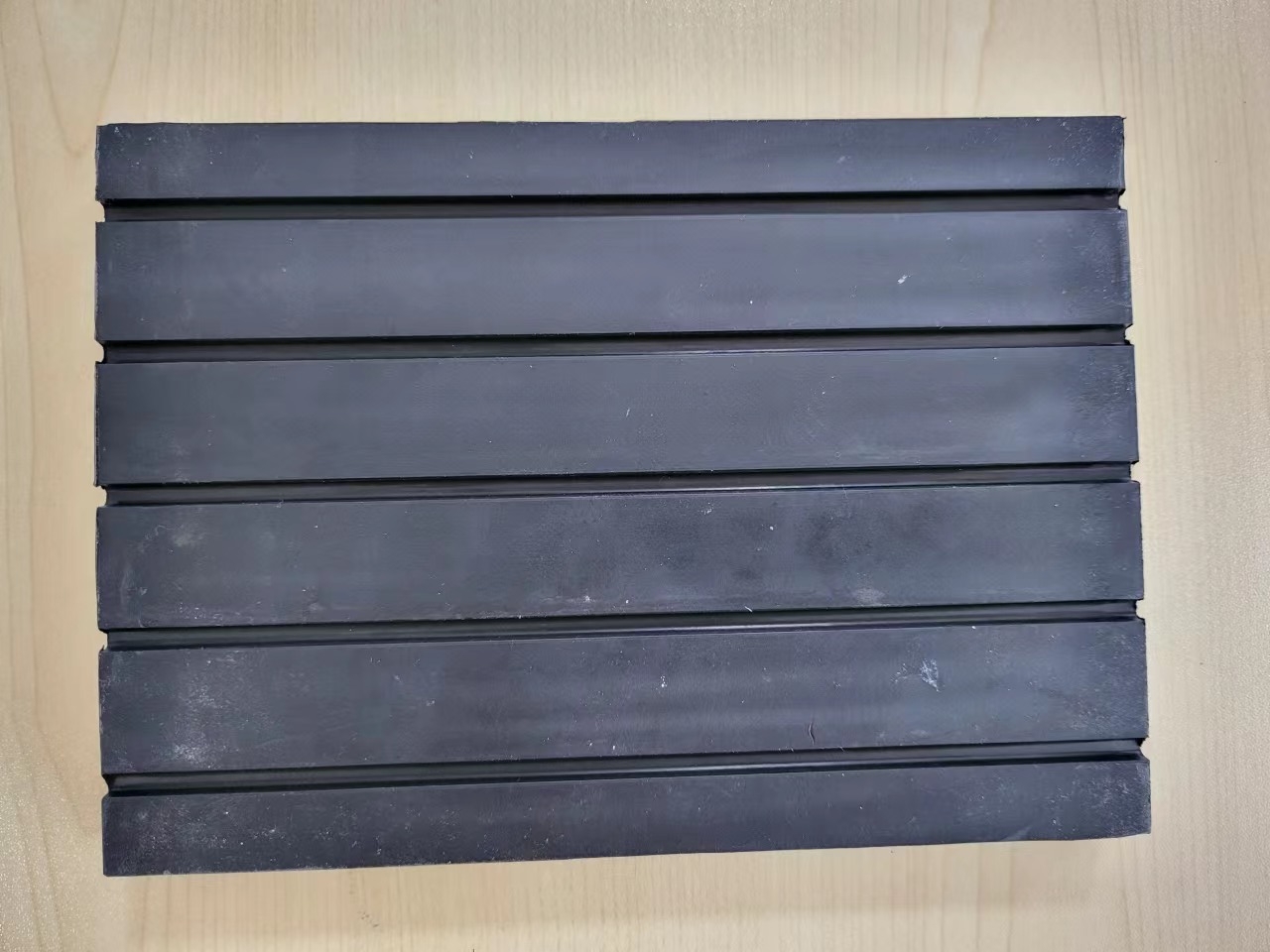

The rubber rail pad for railway track structure (hereinafter referred to as "rubber pad") is an important component in the track structure, which is installed between the steel rail and the concrete sleeper. Its main function is to buffer the high-speed vibration and impact generated by the passing of vehicles, protect the roadbed and sleepers, and electrically insulate the signal system. In addition, since the rubber pad is exposed to the atmosphere for a long time, it is required to have good resistance to natural aging, cold resistance, heat resistance, shock absorption and noise reduction.

Features of rubber pads:

1. Strong shock absorption, anti-aging, wear resistance, stability, high and low temperature resistance. Product materials include natural rubber, styrene-butadiene rubber, neoprene, HDPE, EVA, high-density polyethylene, etc. The product has high elasticity and is not easy to deform or break at various temperatures.

2. Long service life and low maintenance and replacement costs.

3. It is suitable for the laying of various rails such as 43KG, 50KG, 60KG, and various sleepers such as wooden sleepers and concrete sleepers.

4. Good shockproof performance, good insulation performance, wear resistance, less deformation after repeated compression, anti-aging, long service life and easy installation. The use of railway rubber pads can greatly improve the transport capacity of motor vehicles.

Rubber backing plate is made of rubber as the main raw material, scientific formula and high-tech production technology. The rubber backing plate meets the requirements of railway acceleration, shock absorption and buffering.
